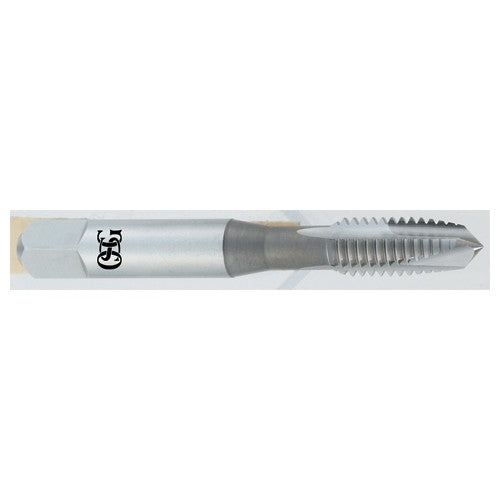

3/8-16 3FL 3B High Speed Steel Spiral Point Tap - TIN
Item #: TP202881005
Brand: OSG USA, Inc.
Model #: 2881005
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSS |
| Thread Size | 3/8″ - 16 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 3/8″ |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 16 |
| Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Thread Tolerance Class (TCTR) | 3B |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 1.248″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Inch |
| Coating | TiN |
| Series/List # | 288 |
| Flute Count (NOF) | 3 |
