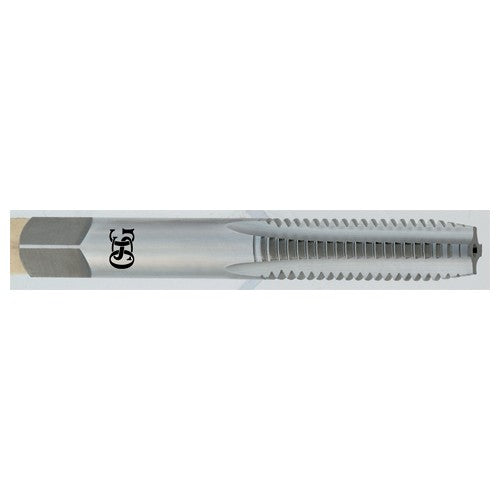

5/16-18 Dia. - H3-4 FL - HSS - Bright - Plug-STI Tap
Item #: TP201812400
Brand: OSG USA, Inc.
Model #: 1812400
| Product Specifications | |
|---|---|
| Tool Type | STI Tap | Hand Tap |
| Flute Count (NOF) | 4 |
| Style | Plug |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | 5/16″ |
| Chamfer | 3.5P-4.5P |
| Thread Tolerance Class (TCTR) | H3 |
| Coating | Bright |
| Thread Standard | STI |
| Usable Length (LU) | 1.413″ |
| Thread Cutting Part Length (THL) | 0.834″ |
| Measurement Type | Inch |
| Threads per Inch (TPI) | 18 |
| Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Overall Length (OAL) | 2.93″ |
| Series/List # | 126 |
| Cutting Edge Material | HSS |
| Thread Size | 5/16″ - 18 |
