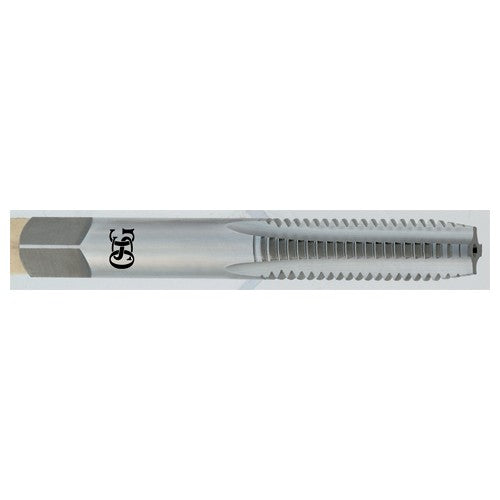

10-24 Dia. - H2-3 FL - HSS - Bright-Plug-Dia. - STI - Tap
Item #: TP201805600
Brand: OSG USA, Inc.
Model #: 1805600
| Product Specifications | |
|---|---|
| Tool Type | STI Tap | Hand Tap |
| Flute Count (NOF) | 3 |
| Style | Plug |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | #10 |
| Chamfer | 3.5P-4.5P |
| Thread Tolerance Class (TCTR) | H2 |
| Coating | Bright |
| Thread Standard | STI |
| Usable Length (LU) | 1.291″ |
| Thread Cutting Part Length (THL) | 0.732″ |
| Measurement Type | Wire Gage |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Overall Length (OAL) | 2.6″ |
| Series/List # | 126 |
| Cutting Edge Material | HSS |
| Thread Size | #10 - 24 |
