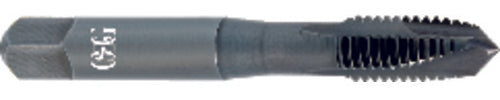

M8 1.25 Dia. - STI - D3-3 FL - Spiral Point Plug Tap
Item #: TP2012700700
Brand: OSG USA, Inc.
Model #: 12700700
| Product Specifications | |
|---|---|
| Tool Type | STI Tap | Hand Tap |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Style | Plug |
| Chamfer | 3.5P-4P |
| Thread Diameter Size (TDZ) | M8 |
| Coating | Bright |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Pitch (TP) | 1.25 mm |
| Thread Standard | Metric |
| Usable Length (LU) | 32 mm |
| Thread Cutting Part Length (THL) | 19 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 74 mm |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Cutting Edge Material | HSS |
| Series/List # | 127 |
| End Shape | Spiral Point |
| Thread Size | M8 × 1.25 |
| Flute Count (NOF) | 3 |
