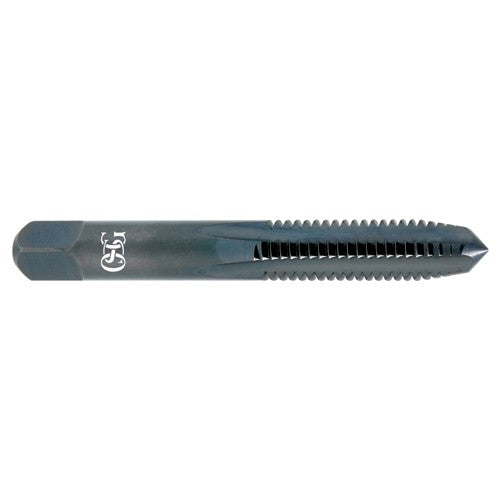

M8 1.25 Dia-D5-4 FL-Nitride & Steam Oxide HSS-Plug Hand Tap
Item #: TP181608307
Brand: OSG USA, Inc.
Model #: 1608307
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Tool Type | General Purpose Tap |
| Thread Pitch (TP) | 1.25 mm |
| Chamfer | 4P-4.5P |
| Thread Standard | Metric |
| Coating | Nitride | Steam Oxide |
| Overall Length (OAL) | 70 mm |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| End Shape | Chamfer |
| Usable Length (LU) | 34 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Applicable Material | Cast Iron |
| Series/List # | 141C |
| Cutting Edge Material | HSS |
| Thread Size | M8 × 1.25 |
| Thread Tolerance Class (TCTR) | D5 |
