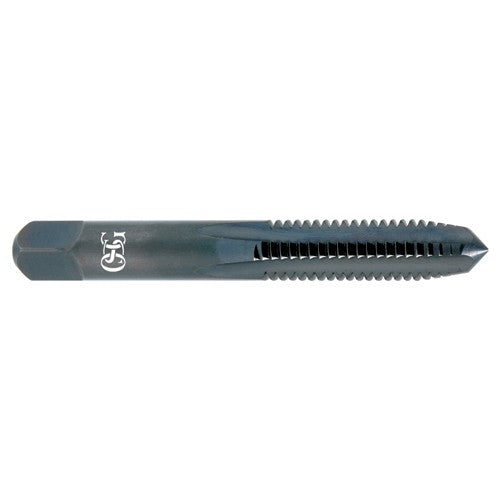

7/16-20 4Fl H5 HSS Straight Flute Bottoming Tap-Nitride & Steam Oxide
Item #: TP181602607
Brand: OSG USA, Inc.
Model #: 1602607
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 |
| Chamfer | 1.5P-2P |
| Thread Standard | NF |
| Coating | Black Oxide | Nitride |
| Overall Length (OAL) | 3-5/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.689″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Cast Iron |
| Series/List # | 101C |
| Cutting Edge Material | HSS |
| Thread Size | 7/16″ - 20 |
