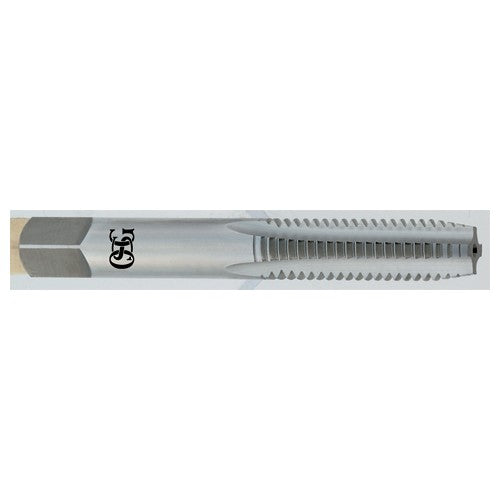

10-32 4Fl H3 HSS Left Hand Straight Flute Bottoming Tap-Bright
Item #: TP161651200
Brand: OSG USA, Inc.
Model #: 1651200
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 32 |
| Chamfer | 1.5P-2P |
| Thread Standard | NF |
| Coating | Bright |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.129″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Wire Gage |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 101L |
| Cutting Edge Material | HSS |
| Thread Size | #10 - 32 |
