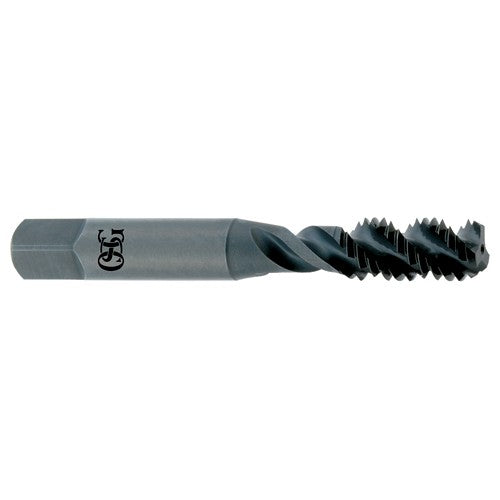

M5x0.8 3Fl D4 High Speed Steel Spiral Flute Tap-Bright
Item #: TP151985801
Brand: OSG USA, Inc.
Model #: 1985801
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.8 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-3/8″ |
| Coating | Bright |
| Thread Cutting Part Length (THL) | 7/8″ |
| Flute Type | Spiral |
| Usable Length (LU) | 22 mm |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm |
| Style | Bottoming |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
