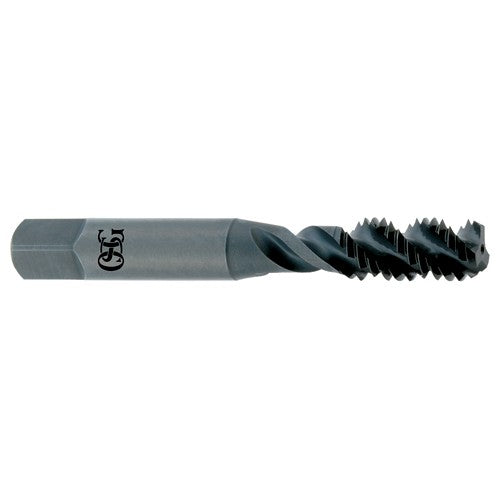

M3x0.5 2Fl D3 High Speed Steel Spiral Flute Tap-Bright
Item #: TP151985201
Brand: OSG USA, Inc.
Model #: 1985201
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Pitch (TP) | 0.5 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 1-15/16″ |
| Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 5/8″ |
| Flute Type | Spiral |
| Usable Length (LU) | 16 mm |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Style | Bottoming |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
