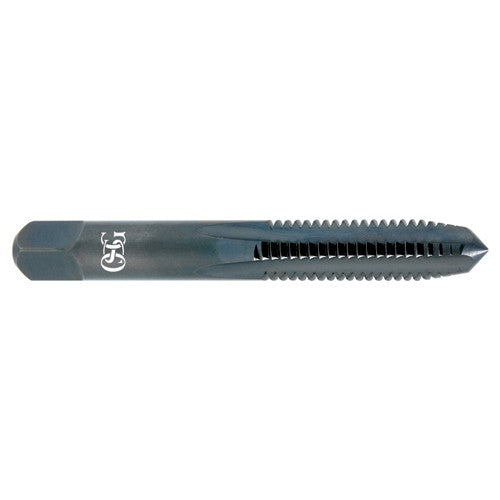

M4x0.7 3Fl HSS Straight Flute Bottoming Tap-Bright
Item #: TP12453
Brand: OSG USA, Inc.
Model #: 453
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Thread Tolerance Class (TCTR) | 2 |
| Thread Pitch (TP) | 0.7 mm |
| Chamfer | 1.5P-2P |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 52 mm |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 20 mm |
| End Shape | Chamfer |
| Usable Length (LU) | 21 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Shank Type | Straight |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 121 |
| Cutting Edge Material | HSS |
| Thread Size | M4 × 0.7 |
