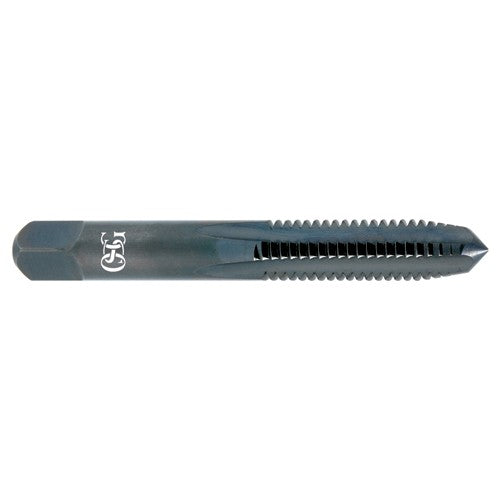

M6x1.0 3Fl HSS Straight Flute Plug Tap-Steam Oxide
Item #: TP1222621
Brand: OSG USA, Inc.
Model #: 22621
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 1 mm |
| Chamfer | 4P-4.5P |
| Thread Standard | Metric |
| Coating | Black Oxide |
| Overall Length (OAL) | 62 mm |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 24 mm |
| End Shape | Chamfer |
| Usable Length (LU) | 29 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Shank Type | Straight |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 121 |
| Cutting Edge Material | HSS |
| Thread Size | M6 × 1 |
| Thread Tolerance Class (TCTR) | 2 |
