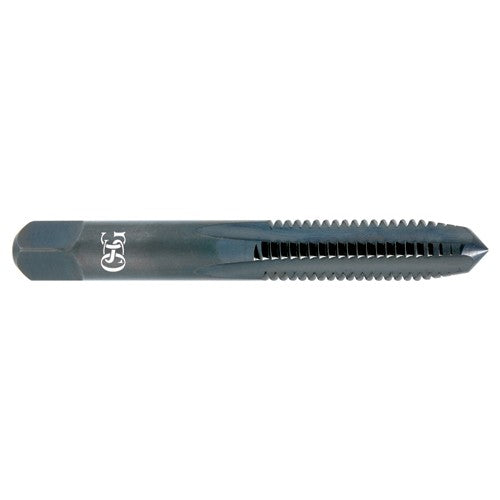

M4 0.7 D4 4FL TAPER ST FL TAP
Item #: TP121970300
Brand: OSG USA, Inc.
Model #: 1970300
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 0.7 mm |
| Chamfer | 5P |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 2-1/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3/4″ |
| End Shape | Chamfer |
| Usable Length (LU) | 24 mm |
| Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 4.26 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 141 |
| Cutting Edge Material | HSS |
| Thread Size | M4 × 0.7 |
| Thread Tolerance Class (TCTR) | D4 |
