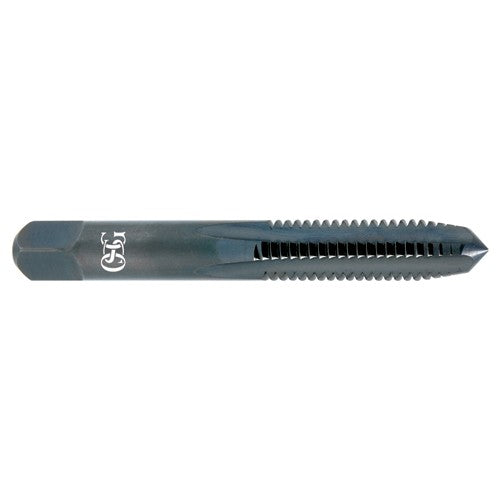

M3 0.5 D3 3FL TAPER ST FL TAP
Item #: TP121970000
Brand: OSG USA, Inc.
Model #: 1970000
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 0.5 mm |
| Chamfer | 5P |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 1-15/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 5/8″ |
| End Shape | Chamfer |
| Usable Length (LU) | 19 mm |
| Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 141 |
| Cutting Edge Material | HSS |
| Thread Size | M3 × 0.5 |
| Thread Tolerance Class (TCTR) | D3 |
