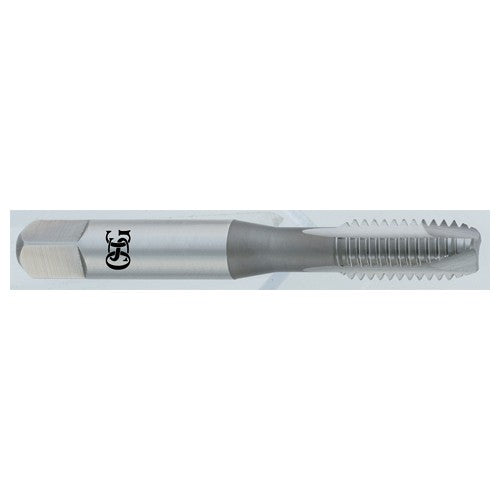

1/2-13 H2 3FL PLUG TIN SP PT TAP
Item #: TP111227405
Brand: OSG USA, Inc.
Model #: 1227405
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Flute Count (NOF) | 3 |
| Thread Size | 1/2″ - 13 |
| Cutting Edge Material | VC10 |
| Thread Diameter Size (TDZ) | 1/2″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 13 |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | H2 |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Usable Length (LU) | 1.374″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 3.37″ |
| Style | Plug |
| Chamfer | 3.5P-4.5P |
| Measurement Type | Inch |
| Coating | TiN |
