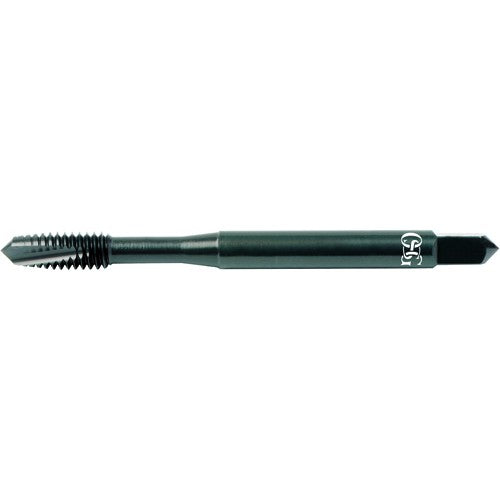

M8X1.25X4 D5 3FL PLUG S/O SP PT TAP
Item #: TP111111800801
Brand: OSG USA, Inc.
Model #: 1111800801
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Flute Count (NOF) | 3 |
| Thread Size | M8 × 1.25 |
| Cutting Edge Material | VC10 |
| Thread Diameter Size (TDZ) | M8 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 1.25 mm |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | D5 |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Usable Length (LU) | 30 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 101mm |
| Style | Plug |
| Chamfer | 3.5P-4.5P |
| Measurement Type | Metric |
| Coating | Black Oxide |
