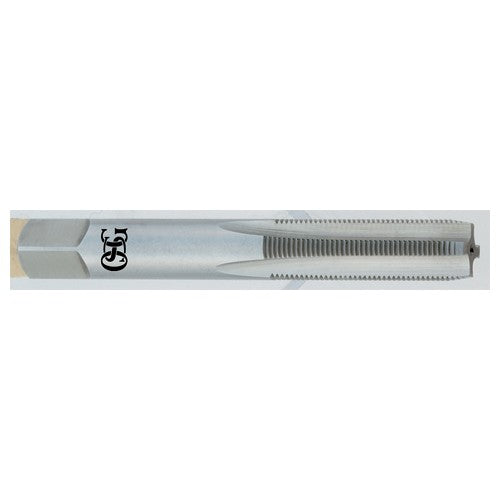

1/2-28 4Fl H3 HSS Straight Flute Bottoming Tap-Bright
Item #: TP101681000
Brand: OSG USA, Inc.
Model #: 1681000
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 28 |
| Chamfer | 1.5P-2P |
| Thread Standard | UNEF |
| Coating | Bright |
| Overall Length (OAL) | 3-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.811″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 101N |
| Cutting Edge Material | HSS |
| Thread Size | 1/2″ - 28 |
