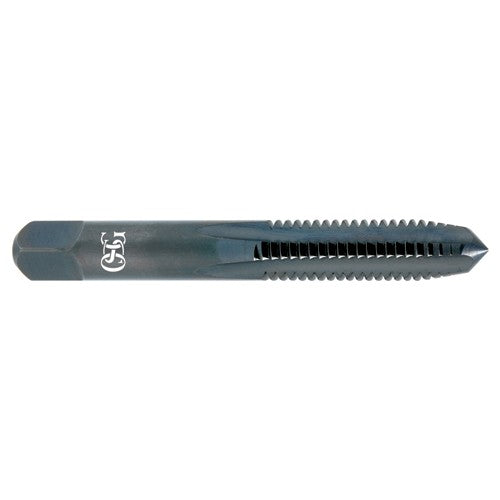

3/8-16 H3 4FL PLUG TAP-TIN
Item #: TP101121305
Brand: OSG USA, Inc.
Model #: 1121305
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 16 |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | UNC |
| Chamfer | 3.5P-4.5P |
| Overall Length (OAL) | 2.93″ |
| Flute Type | Straight |
| Usable Length (LU) | 1.413″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Thread Size | 3/8″ - 16 |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
