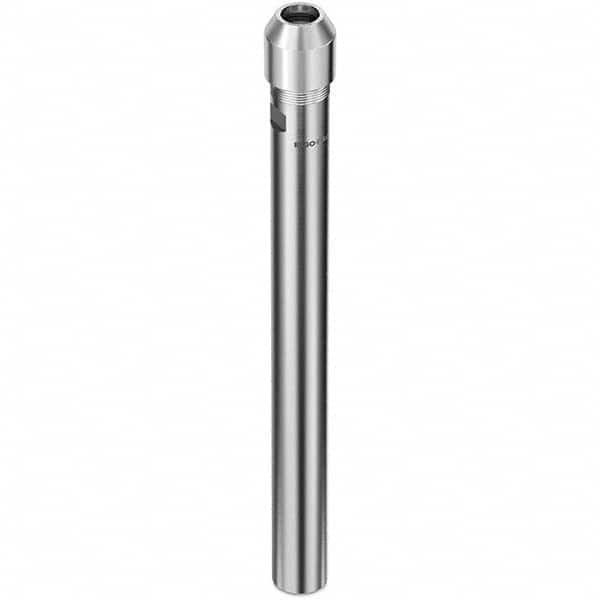

Rego-Fix - 0.5mm x 7mm Straight Shank ER ER11 Collet Chuck
Item #: 46472692
Brand: Rego-Fix
Model #: 5616.11190
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6659 |
| Projection (Inch) | 11 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 7.00 |
| Overall Length (mm) | 167.20 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Shank Length (mm) | 150.00 |
| Nose Diameter (mm) | 16.00 |
| Locknut Diameter (Decimal Inch) | 0.6304 |
| Projection (Decimal Inch) | 11.0000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 16.00 |
| Additional Information | With Hi-Q Nut |
