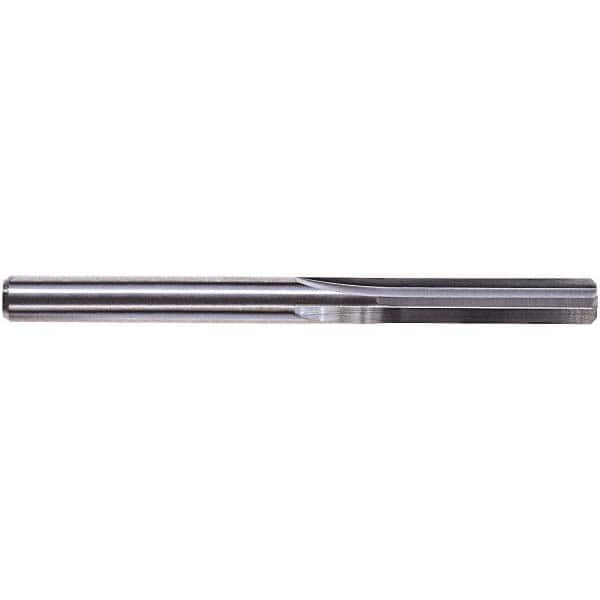

M.A. Ford - 6mm Solid Carbide 4 Flute Chucking Reamer
Item #: 58206400
Brand: M.A. Ford
Model #: 27223620A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 6.00 |
| Reamer Diameter (Decimal Inch) | 0.2362 |
| Reamer Material | Solid Carbide |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (mm) | 76.00 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Length (mm) | 25.50 |
| Flute Length (Decimal Inch) | 1.0000 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 4 |
| Over/Under Size Direction | Over |
| Over/Under Size Reamer | Yes |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | ALtima |
| Reamer Diameter Tolerance (mm) | +0.005 to +0.010 |
| Through Coolant | No |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
