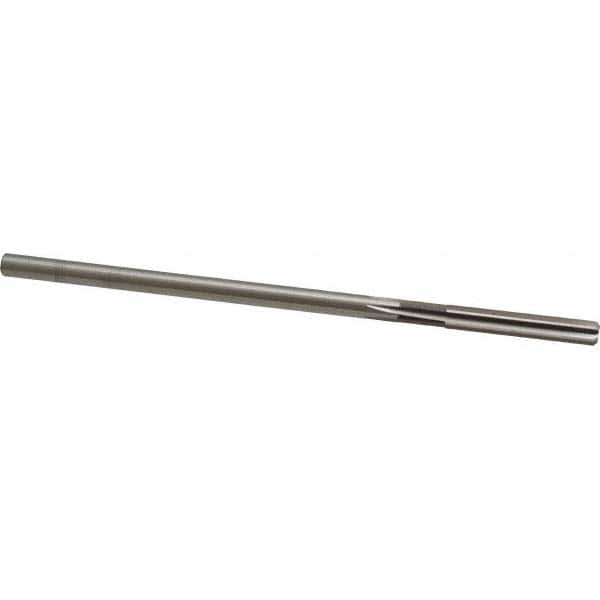

Cleveland - 0.248" High Speed Steel 6 Flute Dowel Pin Chucking Reamer
Item #: 63752273
Brand: Cleveland
Model #: C25508
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.2480 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Flute Length (mm) | 38.10 |
| Flute Length (Inch) | 1-1/2 |
| Flute Length (Decimal Inch) | 1.5000 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 6 |
| Under Size Over Size Dowel Pin Size | 0.2480 D/P |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | Yes |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Dowel Pin Reamer Tolerance (Decimal Inch) | 0.000 to -0.002 |
