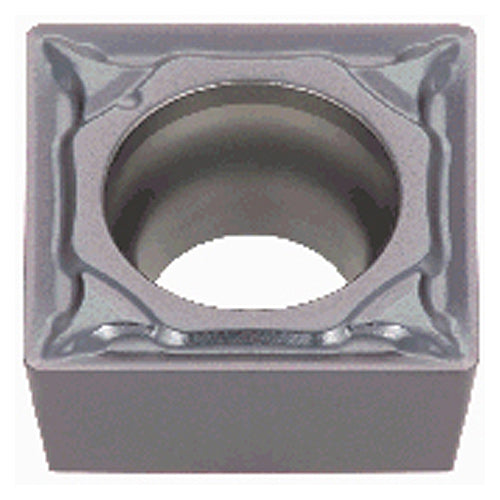

SCMT 432 PS NS9530
Item #: TG556998492
Brand: Tungaloy
Model #: 6998492
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Fixing Hole Diameter (D1) | 0.217″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0197″ |
| Insert Style | SCMT |
| Depth of Cut Maximum (APMX) | 0.0984″ |
| Corner Radius (RE) | 0.031″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Size | 432 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 1/2″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | PS |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Grade | NS9530 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
