TPGT 2.520.5 L-W15 NS9530 - Benchmark Tooling

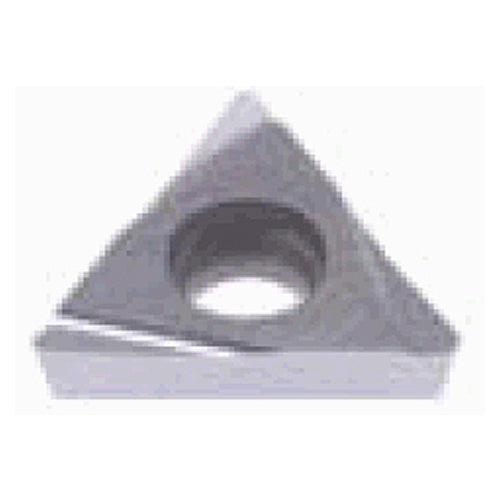

TPGT 2.520.5 L-W15 NS9530


Item #: TG556997981
Brand: Tungaloy
Model #: 6997981

Product Specifications
Applicable Material | Steel | Stainless Steel | Cast Iron |
Fixing Hole Diameter (D1) 0.134″
Application | Inserts |
Min D.O.C. 0.0079″
Insert Style TPGT
Depth of Cut Maximum (APMX) 0.0787″
Corner Radius (RE) 0.008″
Min. Turning Feed (ft(min)) 0.0012 ″/rev
Insert Size 2.520.5
Max. Turning Feed (ft(max)) 0.0079 ″/rev
Cutting Edge Length (L) 0.543″
Clearance Angle Major (AN) 11 Degrees
Insert Thickness (S) 1/8″
Cutting Direction (HAND) Left Hand
Inscribed Circle Diameter (IC) 0.313″
Chip Breaker Type W15
Cutting Edge Material Cermet
Measurement Type Inch
Grade NS9530
Body Material Carbide
Tool Type Turn Positive Inserts
$26.07
