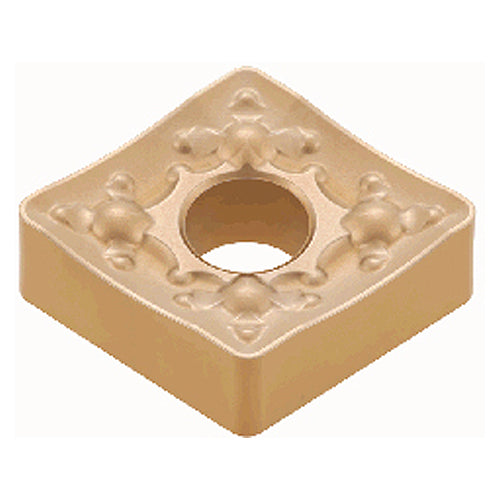

CNMM 543 TRS T9135
Item #: TG556996457
Brand: Tungaloy
Model #: 6996457
| Product Specifications | |
|---|---|
| Applicable Material | Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 1/4″ |
| Insert Style | CNMM |
| Min D.O.C. | 0.1181″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Insert Size | 543 |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.634″ |
| Max. Turning Feed (ft(max)) | 0.0314 ″/rev |
| Insert Thickness (S) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Chip Breaker Type | TRS |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Series/List # | CNMM 543-TRS |
| Grade | T9135 |
| Body Material | Carbide |
