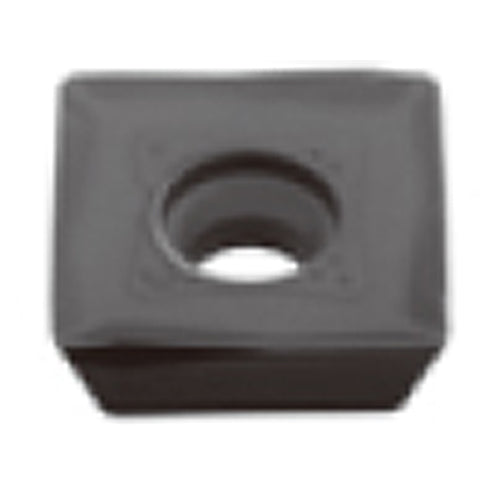

SWMT1304PDPR-MJ T1115
Item #: TG556863808
Brand: Tungaloy
Model #: 6863808
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Grade | T1115 |
| Application | | Shoulder Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.535″ |
| Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.535″ |
| Cutting Edge Effective Length (LE) | 0.535″ |
| Insert Thickness (S) | 0.197″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ |
| Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
