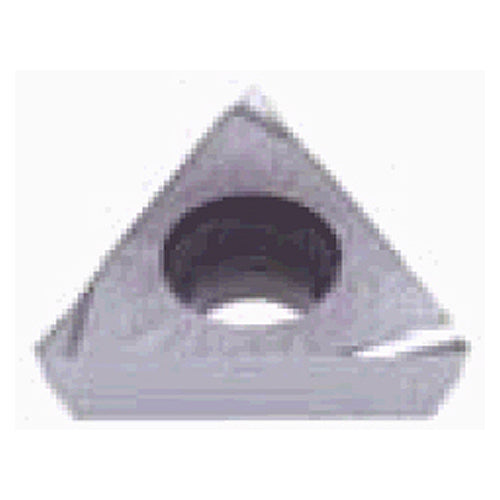

TPGT 5.520.5 R-W08 SH730
Item #: TG556862187
Brand: Tungaloy
Model #: 6862187
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.102″ |
| Insert Style | TPGT |
| Min D.O.C. | 0.0079″ |
| Corner Radius (RE) | 0.008″ |
| Depth of Cut Maximum (APMX) | 0.0394″ |
| Insert Size | 5.520.5 |
| Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.299″ |
| Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.063″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.172″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | W08 |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | SH730 |
| Body Material | Carbide |
