EPGT 4.51.80.5 L-W08 TH10 - Benchmark Tooling

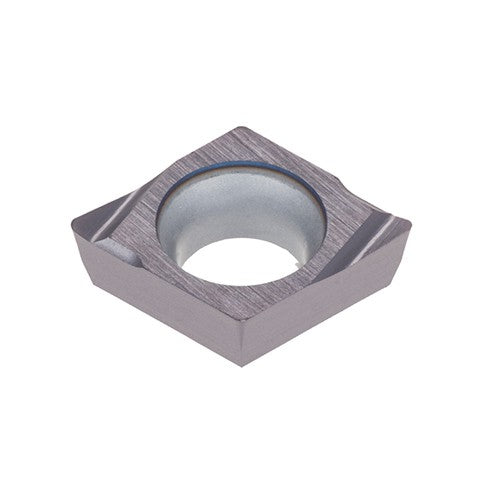

EPGT 4.51.80.5 L-W08 TH10


Item #: TG556862144
Brand: Tungaloy
Model #: 6862144

Product Specifications
Applicable Material | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys |
Fixing Hole Diameter (D1) 0.075″
Application | Inserts |
Min D.O.C. 0.0079″
Insert Style EPGT
Depth of Cut Maximum (APMX) 0.0394″
Corner Radius (RE) 0.008″
Min. Turning Feed (ft(min)) 0.0004 ″/rev
Insert Size 4.51.80.5
Max. Turning Feed (ft(max)) 0.0059 ″/rev
Cutting Edge Length (L) 0.146″
Clearance Angle Major (AN) 11 Degrees
Insert Thickness (S) 0.055″
Cutting Direction (HAND) Left Hand
Inscribed Circle Diameter (IC) 0.141″
Chip Breaker Type W08
Cutting Edge Material Carbide
Measurement Type Inch
Grade TH10
Body Material Carbide
Tool Type Turn Positive Inserts
$19.70
