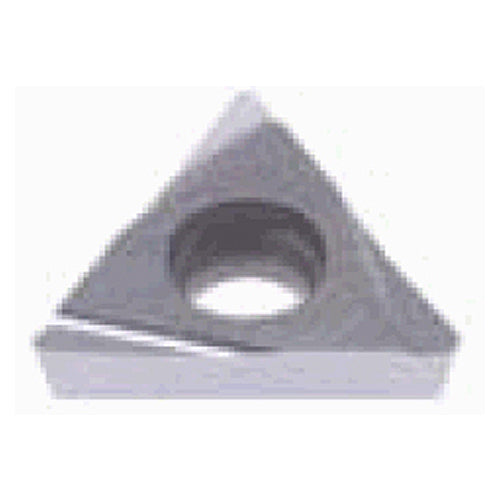

TPGT16T308L-W15 TH10
Item #: TG556808982
Brand: Tungaloy
Model #: 6808982
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Inserts | |
| Min D.O.C. | 0.2 mm |
| Insert Style | TPGT |
| Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.8 mm |
| Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Size | 16T308 |
| Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 16.5 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.97 mm |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Chip Breaker Type | W15 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Grade | TH10 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
