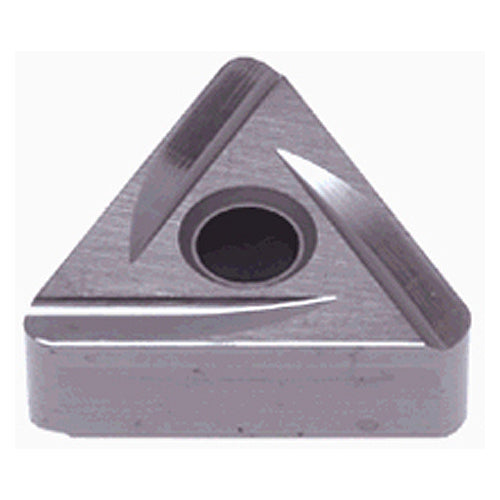

TNGG160404R-C GH110
Item #: TG556808179
Brand: Tungaloy
Model #: 6808179
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | TNGG |
| Min D.O.C. | 0.5 mm |
| Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 160404 |
| Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 16.5 mm |
| Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Chip Breaker Type | C |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Coating | TiCNO |
| Body Material | Carbide |
| Grade | GH110 |
