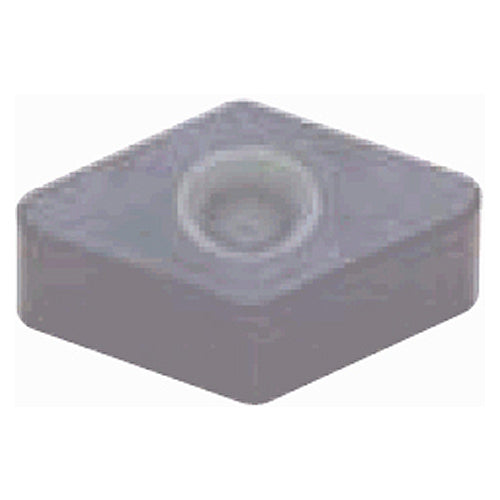

DNGD150708 FX105
Item #: TG555701836
Brand: Tungaloy
Model #: 5701836
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Min D.O.C. | 0.05 mm |
| Insert Style | DNGD |
| Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm |
| Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 150708 |
| Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Cutting Edge Length (L) | 15.5 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 7.94 mm |
| Chip Breaker Type | FT-FX105 |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Measurement Type | Metric |
| Cutting Edge Material | Ceramic |
| Body Material | Carbide |
| Grade | FX105 |
