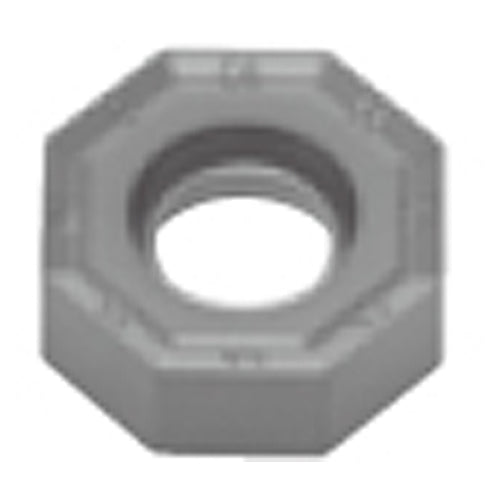

ONMU0705ANPN-MJ AH725
Item #: TG436861820
Brand: Tungaloy
Model #: 6861820
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | AH725 |
| Application | | Face Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.189″ |
| Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.283″ |
| Minimum Feed per Tooth (fz(min)) | 0.008 in/tooth |
| Inscribed Circle Diameter (IC) | 0.681″ |
| Cutting Edge Effective Length (LE) | 0.283″ |
| Insert Thickness (S) | 0.244″ |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
