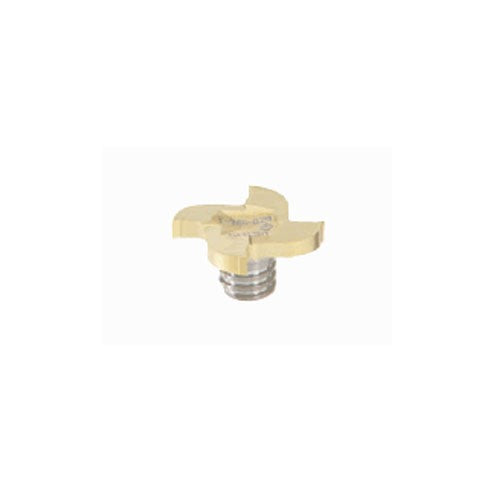

VST217W3.00R020-4S08 AH735
Item #: TG436793384
Brand: Tungaloy
Model #: 6793384
| Product Specifications | |
|---|---|
| Application | | Slot Milling | |
| Functional Length (LF) | 3.15 mm |
| Cutting Diameter (DC) | 21.7 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Count (NOF) | 4 |
| Grade | AH735 |
| Corner Radius (RE) | 0.2 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter Maximum (DCX) | 21.7 mm |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 3 mm |
| Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 3 mm |
| Body Material | Carbide |
