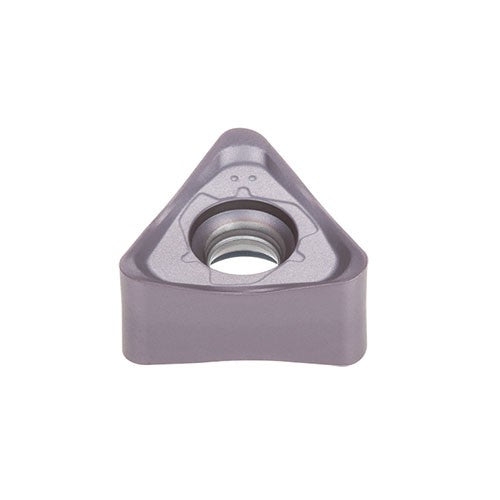

TNMU1207R20PER-MJ AH3135
Item #: TG436787291
Brand: Tungaloy
Model #: 6787291
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Grade | AH3135 |
| Application | | Shoulder Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0118 in/tooth |
| Corner Radius (RE) | 0.0787″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.433″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Edge Effective Length (LE) | 0.472″ |
| Insert Thickness (S) | 0.265″ |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
