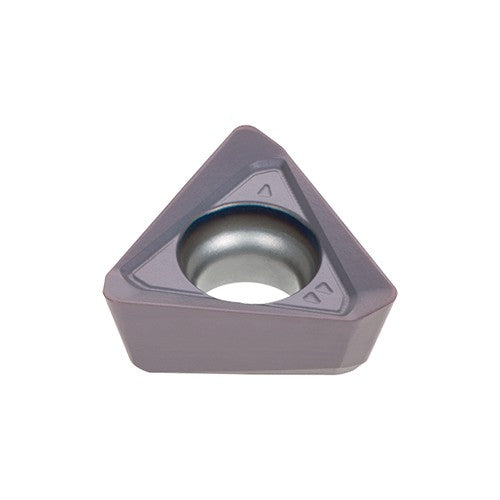

TOET060302PDER-MJ AH3135
Item #: TG436776061
Brand: Tungaloy
Model #: 6776061
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Grade | AH3135 |
| Application | | Shoulder Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.006 in/tooth |
| Corner Radius (RE) | 0.0079″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.22″ |
| Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Thickness (S) | 0.13″ |
| Cutting Edge Effective Length (LE) | 0.244″ |
| Wiper Edge Length (BS) | 0.051″ |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
