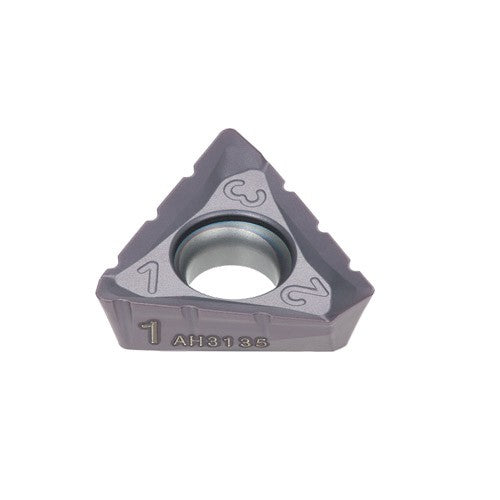

TOMT150608PDER-NMJ T3225
Item #: TG436774956
Brand: Tungaloy
Model #: 6774956
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Grade | T3225 |
| Application | | Shoulder Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0087 in/tooth |
| Corner Radius (RE) | 0.0315″ |
| Minimum Feed per Tooth (fz(min)) | 0.003 in/tooth |
| Depth of Cut Maximum (APMX) | 0.591″ |
| Cutting Edge Effective Length (LE) | 0.618″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.236″ |
| Body Material | Carbide |
| Wiper Edge Length (BS) | 0.075″ |
