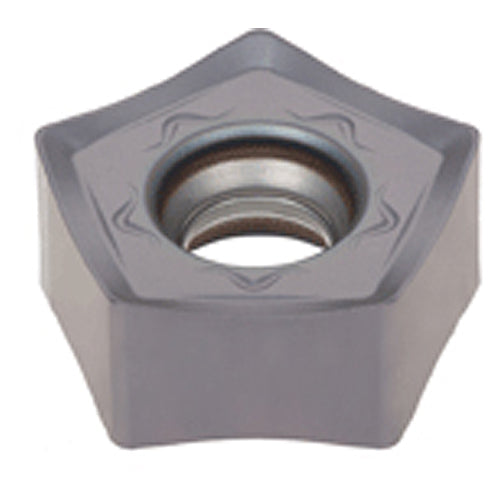

PNMU0905GNEN-MJ T3225
Item #: TG436762077
Brand: Tungaloy
Model #: 6762077
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Grade | T3225 |
| Application | | Face Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |
| Corner Radius (RE) | 0.0315″ |
| Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.252″ |
| Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.48″ |
| Cutting Edge Effective Length (LE) | 0.35″ |
| Insert Thickness (S) | 0.236″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ |
| Body Material | Carbide |
