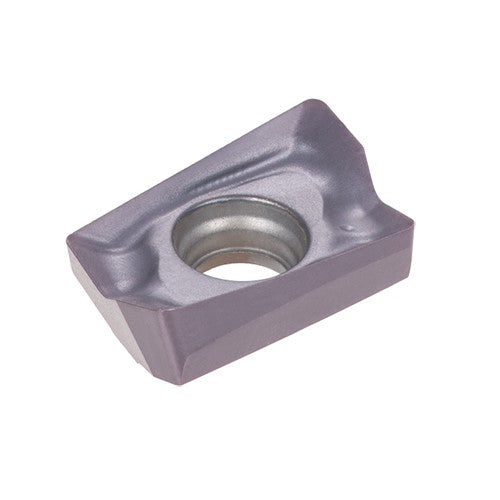

AVGT060308PBER-MJ AH120
Item #: TG436743205
Brand: Tungaloy
Model #: 6743205
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Grade | AH120 |
| Application | | Shoulder Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0047 in/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0027 in/tooth |
| Insert Width (W1) | 0.197″ |
| Cutting Edge Effective Length (LE) | 0.315″ |
| Insert Thickness (S) | 0.102″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.035″ |
| Body Material | Carbide |
| Coating | TiAlN |
