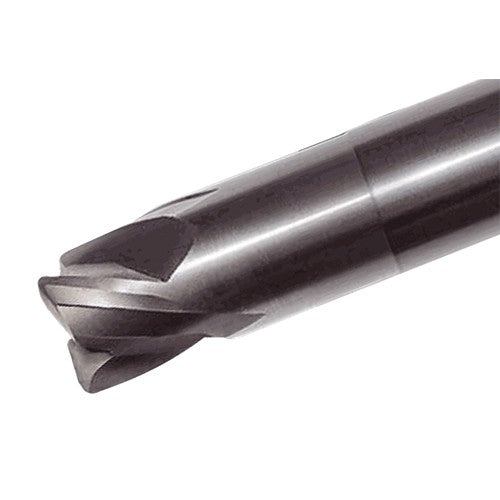

TCFF120A3-10/30C12-72 FX510
Item #: TG435877470
Brand: Tungaloy
Model #: 5877470
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Corner Radius (RE) | 1.1 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Grade | FX510 |
| Depth of Cut Maximum (APMX) | 0.6 mm |
| Neck Diameter (DN) | 11.5 mm |
| Overall Length (OAL) | 72 mm |
| Head Length (LH) | 30 mm |
| Flute Count (NOF) | 3 |
| Neck Length (LN) | 30 mm |
| Shank Type | Round |
| Tool Type | Solid carbide non center cutting endmills 90 |
| End Shape | Corner Radius |
| Body Material | Carbide |
| Applicable Material | | Cast Iron | Hi Temp Alloys | |
| Measurement Type | Metric |
| Application | Face Milling | High Feed Milling |
