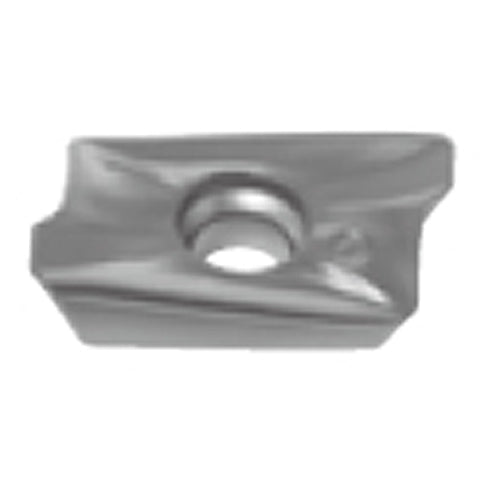

AOMT180516PDPR-MJ AH140
Item #: TG435805672
Brand: Tungaloy
Model #: 5805672
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | |
| Grade | AH140 |
| Application | | Shoulder Milling | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Insert Length (INSL) | 0.768″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.657″ |
| Minimum Feed per Tooth (fz(min)) | 0.003 in/tooth |
| Insert Width (W1) | 0.421″ |
| Cutting Edge Effective Length (LE) | 0.768″ |
| Inscribed Circle Diameter (IC) | 0.421″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.22″ |
| Body Material | Carbide |
| Coating | TiAlN |
