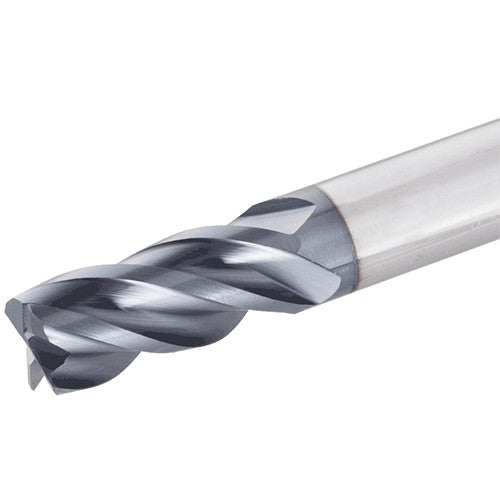

TECK080H4M-16W08CF-R04C GH730
Item #: TG435668355
Brand: Tungaloy
Model #: 5668355
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 16 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 63 mm |
| Grade | GH730 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiCNO |
| Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Flute Count (NOF) | 4 |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Shank Type | Weldon |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | |
