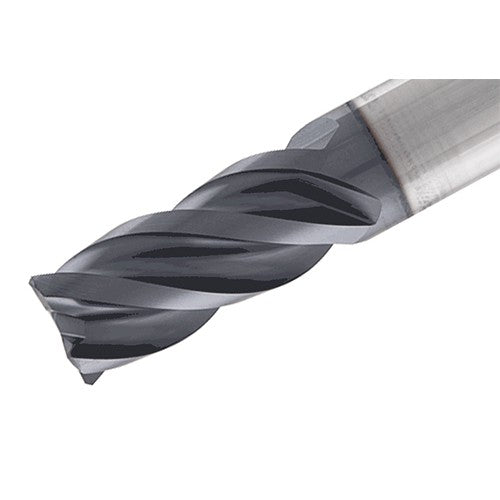

TEC120H4M-24C12CF-E83 AH725
Item #: TG435667913
Brand: Tungaloy
Model #: 5667913
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 24 mm |
| Corner Chamfer Width (CHW) | 0.5 mm |
| Overall Length (OAL) | 83 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 4 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Chamfer |
| Measurement Type | Metric |
