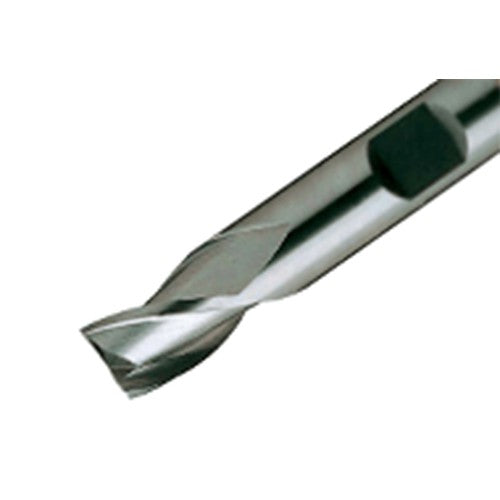

TEC060E3-16C06-E50 AH725
Item #: TG435651036
Brand: Tungaloy
Model #: 5651036
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 16 mm |
| Application | | Shoulder Milling | |
| Overall Length (OAL) | 50 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Flute Count (NOF) | 3 |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
