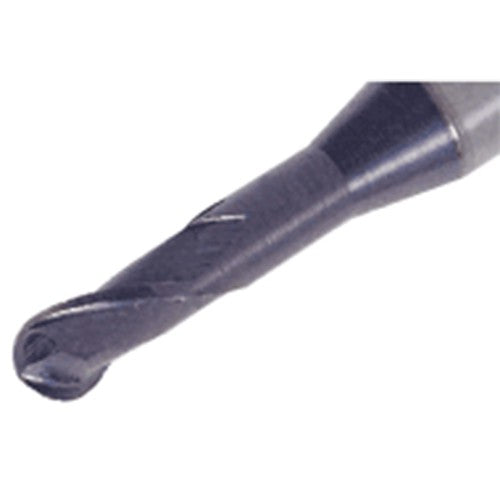

TEB015A2-023/08C4M45 AH750
Item #: TG435650313
Brand: Tungaloy
Model #: 5650313
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 2.3 mm |
| Application | | Profile Milling | |
| Overall Length (OAL) | 45 mm |
| Corner Radius (RE) | 0.75 mm |
| Cutting Edge Material | Carbide |
| Neck Diameter (DN) | 1.45 |
| Coating | TiAlN |
| Grade | AH750 |
| Flute Count (NOF) | 2 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
