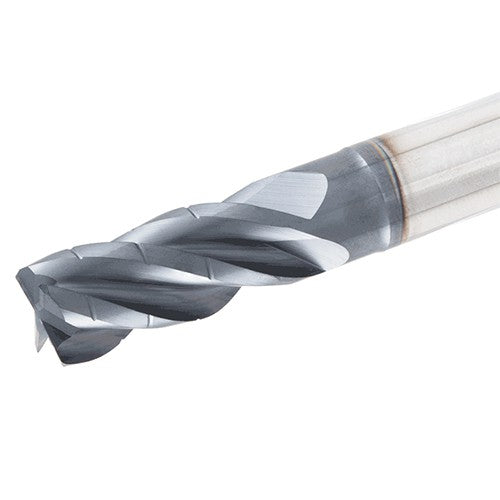

TECP120H4L-24/38W12CF-R06 AH725
Item #: TG435623468
Brand: Tungaloy
Model #: 5623468
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | | Counter Boring | Drilling | Hole Enlarging | Pocket Milling | Ramping | Shoulder Milling | Slot Milling | |
| Depth of Cut Maximum (APMX) | 24 mm |
| Corner Radius (RE) | 0.6 mm |
| Overall Length (OAL) | 83 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Head Length (LH) | 38 mm |
| Coating | AlTiN |
| Neck Length (LN) | 38 mm |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Shank Type | Weldon |
| Shank Size (SS) | 12 mm |
| End Shape | Corner Radius |
