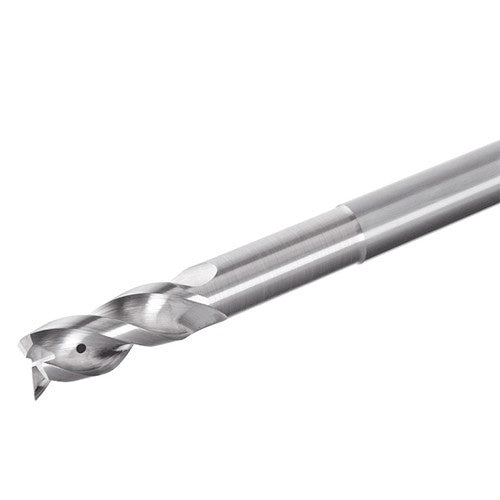

TECA060H3-12/30C06CF-R02C KS15F
Item #: TG435623173
Brand: Tungaloy
Model #: 5623173
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Corner Radius (RE) | 0.2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Grade | KS15F |
| Depth of Cut Maximum (APMX) | 12 mm |
| Head Length (LH) | 30 mm |
| Overall Length (OAL) | 65 mm |
| Neck Length (LN) | 30 mm |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 3 |
| Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Shank Type | Round |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| End Shape | Corner Radius |
| Body Material | Carbide |
| Applicable Material | | Non Ferrous Metals | |
| Measurement Type | Metric |
| Application | | Shoulder Milling | |
