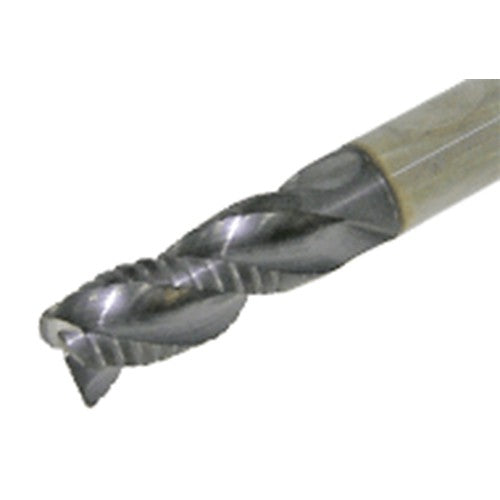

TECP160E3L-34/50W16S100 AH725
Item #: TG435622205
Brand: Tungaloy
Model #: 5622205
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 34 mm |
| Corner Chamfer Width (CHW) | 0.5 mm |
| Overall Length (OAL) | 100 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Head Length (LH) | 50 mm |
| Coating | TiAlN |
| Neck Length (LN) | 50 mm |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Shank Type | Weldon |
| Measurement Type | Metric |
| End Shape | Chamfer |
