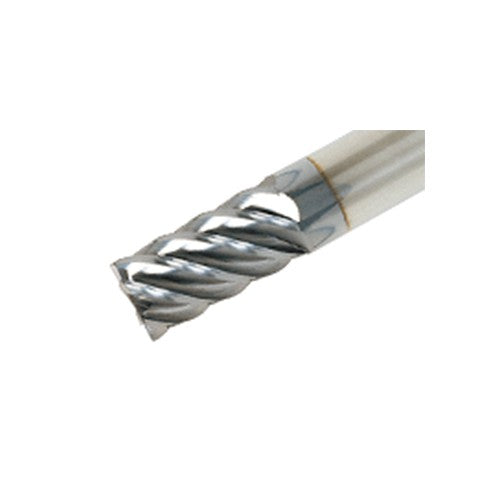

TECH160B6-32W16-92 AH725
Item #: TG435621233
Brand: Tungaloy
Model #: 5621233
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 32 mm |
| Grade | AH725 |
| Overall Length (OAL) | 92 mm |
| Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Coating | TiAlN |
| Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 6 |
| Body Material | Carbide |
| Shank Type | Weldon |
| Measurement Type | Metric |
| End Shape | Square |
