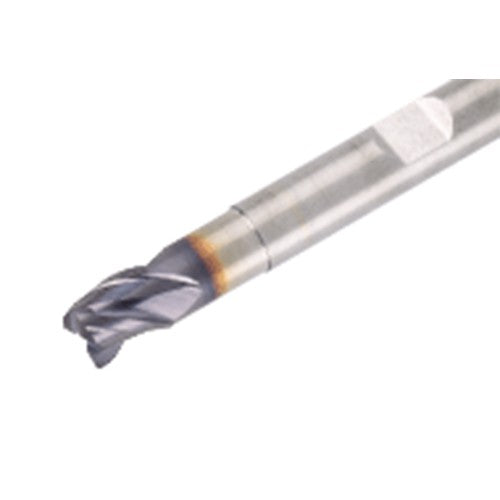

TECCS160E3-16W16-92 AH725
Item #: TG435620544
Brand: Tungaloy
Model #: 5620544
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16 mm |
| Corner Chamfer Width (CHW) | 0.25 mm |
| Overall Length (OAL) | 92 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Neck Diameter (DN) | 15.2 mm |
| Coating | TiAlN |
| Head Length (LH) | 32 mm |
| Flute Count (NOF) | 3 |
| Neck Length (LN) | 32 mm |
| Shank Type | Weldon |
| Body Material | Carbide |
| End Shape | Chamfer |
| Measurement Type | Metric |
