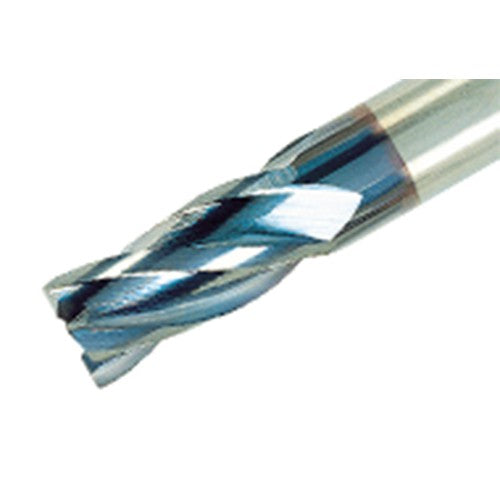

TECC160A4-32C16-92 AH725
Item #: TG435620350
Brand: Tungaloy
Model #: 5620350
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 32 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Overall Length (OAL) | 92 mm |
| Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide |
| Corner Chamfer Width (CHW) | 0.25 mm |
| Coating | TiAlN |
| Grade | AH725 |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
