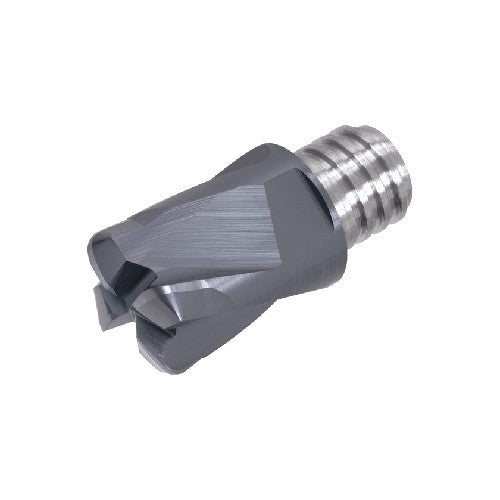

VFX160L0.80R22H04S10 AH725
Item #: TG433353484
Brand: Tungaloy
Model #: 3353484
| Product Specifications | |
|---|---|
| Application | | Face Milling | High Feed Milling | Profile Milling | |
| Grade | AH725 |
| Cutting Diameter (DC) | 16 mm |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Corner Radius (RE) | 2.2 mm |
| fz(max) | 0.75 mm/tooth |
| Cutting Diameter Maximum (DCX) | 16 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.8 mm |
| Tool Type | Solid dovetail endmills |
| Functional Length (LF) | 20.5 mm |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 20 Degrees |
