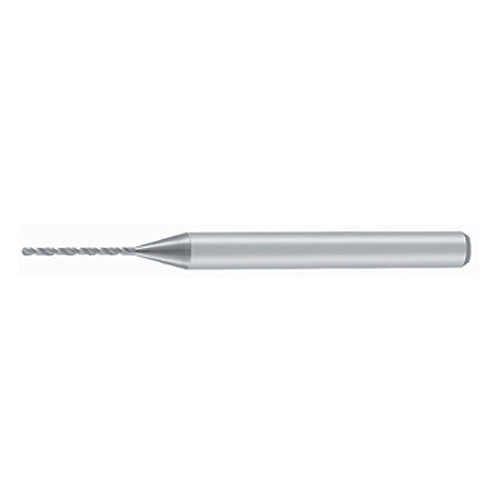

DSM0130G05 YH170
Item #: TG306844066
Brand: Tungaloy
Model #: 6844066
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.3 mm |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.3 mm |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | solid carbide Drills |
| Application | | General Drilling | |
| Grade | YH170 |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 6.5 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 9.7 mm |
| Point Length (PL) | 0.24 mm |
| Overall Length (OAL) | 38 mm |
| Shank Length (LS) | 24.5 mm |
| Body Material | Carbide |
